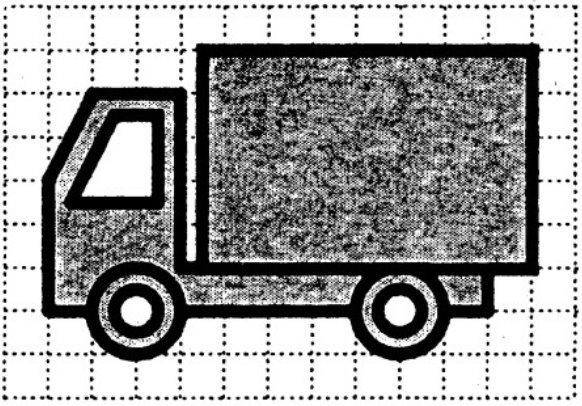

вантажний автомобіль
ProgramDlg.h
// ProgramDlg.h : header file
//
#pragma once
#define mtime 298
#define PI 3.1415926535897932384626433832795
// CProgramDlg dialog
class CProgramDlg : public CDialog
{
// Construction
public:
CProgramDlg(CWnd* pParent = nullptr); // standard constructor
// Dialog Data
#ifdef AFX_DESIGN_TIME
enum { IDD = IDD_PROGRAM_DIALOG };
#endif
protected:
virtual void DoDataExchange(CDataExchange* pDX); // DDX/DDV support
// Implementation
protected:
HICON m_hIcon;
// Generated message map functions
virtual BOOL OnInitDialog();
afx_msg void OnPaint();
afx_msg HCURSOR OnQueryDragIcon();
public:
afx_msg void Circl(int X, int Y, int D, int WDT, COLORREF CF);
private:
CWnd* WndPtr;
HWND hwdesc;
HDC hdesc;
HDC hdc;
HDC hdct;
CPoint ps;
CString ms, t, z, PORADA[120];
CRect rc, kw[15], w;
CBitmap pic;
HBITMAP hbmn;
BITMAP bm;
HBITMAP hbm;
BITMAPINFO bmi;
int nweiDst, nheiDst;
COLORREF cf, ck, c[15];
DWORD* arb;
HPEN hPenOxy, hOldPen, pen;
HBRUSH m, oldm, brush;
CPen d, oldd;
HFONT hold, hNew, hbk;
int x1, y1, x2, y2, x3, y3, x4, y4;
int RH, RW, k, i, j, p, x, y, cx, cy, dx, dy;
int counter;
int pfix, jfix;
bool fg;
DECLARE_MESSAGE_MAP()
};
ProgramDlg.cpp
// ProgramDlg.cpp : implementation file
//
#include "stdafx.h"
#include "Program.h"
#include "ProgramDlg.h"
#include "afxdialogex.h"
#ifdef _DEBUG
#define new DEBUG_NEW
#endif
// CProgramDlg dialog
CProgramDlg::CProgramDlg(CWnd* pParent /*=nullptr*/)
: CDialog(IDD_PROGRAM_DIALOG, pParent)
{
m_hIcon = AfxGetApp()->LoadIcon(IDR_MAINFRAME);
}
void CProgramDlg::DoDataExchange(CDataExchange* pDX)
{
fg = true;
SetWindowTextW(L"Program");
CDialog::DoDataExchange(pDX);
}
BEGIN_MESSAGE_MAP(CProgramDlg, CDialog)
ON_WM_PAINT()
ON_WM_QUERYDRAGICON()
END_MESSAGE_MAP()
// CProgramDlg message handlers
BOOL CProgramDlg::OnInitDialog()
{
CDialog::OnInitDialog();
// Set the icon for this dialog. The framework does this automatically
// when the application's main window is not a dialog
SetIcon(m_hIcon, TRUE); // Set big icon
SetIcon(m_hIcon, FALSE); // Set small icon
// TODO: Add extra initialization here
return TRUE; // return TRUE unless you set the focus to a control
}
// If you add a minimize button to your dialog, you will need the code below
// to draw the icon. For MFC applications using the document/view model,
// this is automatically done for you by the framework.
void CProgramDlg::OnPaint()
{
if (IsIconic())
{
CPaintDC dc(this); // device context for painting
SendMessage(WM_ICONERASEBKGND, reinterpret_cast<WPARAM>(dc.GetSafeHdc()), 0);
// Center icon in client rectangle
int cxIcon = GetSystemMetrics(SM_CXICON);
int cyIcon = GetSystemMetrics(SM_CYICON);
CRect rect;
GetClientRect(&rect);
int x = (rect.Width() - cxIcon + 1) / 2;
int y = (rect.Height() - cyIcon + 1) / 2;
// Draw the icon
dc.DrawIcon(x, y, m_hIcon);
}
else
{
CClientDC dc(this);
GetClientRect(&rc);
dc.FillSolidRect(&rc, RGB(255, 255, 255));
RH = abs(rc.left - rc.right);
RW = abs(rc.top - rc.bottom);
dx = 570;
dy = 200;
x = x1 = rc.left + 300;
y = y1 = rc.top + 500;
cf = 0x00000000;
hPenOxy = CreatePen(PS_SOLID, 12, cf);
hOldPen = (HPEN)SelectObject(dc, hPenOxy);
for (k = 0; k < 550; k++)
{
x1 = rc.left + 600-k;
y1 = rc.top + 340;
dc.MoveTo(x1, y1);
dc.LineTo(x1, y1 - 130);
x1 = x1; y1 = y1 - 130;
dc.LineTo(x1 + 40, y1 - 80);
x1 = x1 + 40; y1 = y1 - 80;
dc.LineTo(x1 + 100, y1);
x1 = x1 + 100; y1 = y1;
dc.LineTo(x1, y1 + 150);
x1 = x1; y1 = y1 + 150;
dc.LineTo(x1 + 300, y1);
x1 = x1 + 300; y1 = y1;
dc.LineTo(x1, y1 + 60);
x1 = x1; y1 = y1 + 60;
dc.LineTo(x1 - 440, y1);
x1 = x1 - 440; y1 = y1;
dc.MoveTo(x1 + 160, y1 - 230);
x1 = x1 + 160; y1 = y1 - 230;
//dc.Rectangle(x1, y1, x1 + 320, y1 + 170);
dc.MoveTo(x1, y1);
dc.LineTo(x1 + 320, y1);
dc.LineTo(x1 + 320, y1+170);
dc.LineTo(x1, y1+170);
dc.LineTo(x1, y1);
x1 = x1 + 320; y1 = y1 + 170;
dc.MoveTo(x1 - 460, y1 - 50);
x1 = x1 - 460; y1 = y1 - 50;
dc.LineTo(x1 + 40, y1 - 80);
x1 = x1 + 40; y1 = y1 - 80;
dc.LineTo(x1 + 60, y1);
x1 = x1 + 60; y1 = y1;
dc.LineTo(x1, y1 + 80);
x1 = x1; y1 = y1 + 80;
dc.LineTo(x1 - 95, y1);
x1 = x1 - 90; y1 = y1;
dc.MoveTo(x1, y1 + 30);
x1 = x1 + 20; y1 = y1 + 55;
dc.Ellipse(x1, y1, x1 + 85, y1 + 85);
dc.Ellipse(x1 + 20, y1 + 20, x1 + 65, y1 + 65);
x1 = x1 + 270; y1 = y1;
dc.MoveTo(x1, y1 + 30);
x1 = x1; y1 = y1;
dc.Ellipse(x1, y1, x1 + 85, y1 + 85);
dc.Ellipse(x1 + 20, y1 + 20, x1 + 65, y1 + 65);
Sleep(25);
dc.FillSolidRect(&rc, RGB(255, 255, 255));
}
x1 = rc.left + 50;
y1 = rc.top + 340;
dc.MoveTo(x1, y1);
dc.LineTo(x1, y1 - 130);
x1 = x1; y1 = y1 - 130;
dc.LineTo(x1 + 40, y1 - 80);
x1 = x1 + 40; y1 = y1 - 80;
dc.LineTo(x1 + 100, y1);
x1 = x1 + 100; y1 = y1;
dc.LineTo(x1, y1 + 150);
x1 = x1; y1 = y1 + 150;
dc.LineTo(x1 + 300, y1);
x1 = x1 + 300; y1 = y1;
dc.LineTo(x1, y1 + 60);
x1 = x1; y1 = y1 + 60;
dc.LineTo(x1 - 440, y1);
x1 = x1 - 440; y1 = y1;
dc.MoveTo(x1 + 160, y1 - 230);
x1 = x1 + 160; y1 = y1 - 230;
//dc.Rectangle(x1, y1, x1 + 320, y1 + 170);
dc.MoveTo(x1, y1);
dc.LineTo(x1 + 320, y1);
dc.LineTo(x1 + 320, y1 + 170);
dc.LineTo(x1, y1 + 170);
dc.LineTo(x1, y1);
x1 = x1 + 320; y1 = y1 + 170;
dc.MoveTo(x1 - 460, y1 - 50);
x1 = x1 - 460; y1 = y1 - 50;
dc.LineTo(x1 + 40, y1 - 80);
x1 = x1 + 40; y1 = y1 - 80;
dc.LineTo(x1 + 60, y1);
x1 = x1 + 60; y1 = y1;
dc.LineTo(x1, y1 + 80);
x1 = x1; y1 = y1 + 80;
dc.LineTo(x1 - 95, y1);
x1 = x1 - 90; y1 = y1;
dc.MoveTo(x1, y1 + 30);
x1 = x1 + 20; y1 = y1 + 55;
dc.Ellipse(x1, y1, x1 + 85, y1 + 85);
dc.Ellipse(x1 + 20, y1 + 20, x1 + 65, y1 + 65);
//Circl(x1+40, y1+40, 85, 11, RGB(0, 0, 0));
x1 = x1 + 270; y1 = y1;
dc.MoveTo(x1, y1 + 30);
x1 = x1; y1 = y1;
dc.Ellipse(x1, y1, x1 + 85, y1 + 85);
dc.Ellipse(x1 + 20, y1 + 20, x1 + 65, y1 + 65);
SelectObject(dc, hOldPen);
DeleteObject(hPenOxy);
CDialog::OnPaint();
}
}
// The system calls this function to obtain the cursor to display while the user drags
// the minimized window.
HCURSOR CProgramDlg::OnQueryDragIcon()
{
return static_cast<HCURSOR>(m_hIcon);
}
afx_msg void CProgramDlg::Circl(int X, int Y, int D, int WDT, COLORREF CF)
{
CClientDC dc(this);
hPenOxy = CreatePen(PS_SOLID, WDT, CF);
hOldPen = (HPEN)SelectObject(dc, hPenOxy);
double xf, yf, f;
f = 0;
dc.MoveTo(X + D / 2, Y);
do
{
xf = D / 2 * cos(f);
yf = D / 2 * sin(f);
dc.LineTo(xf + X, yf + Y);
f += 0.09;
} while (f <= 360);
}
123
